Decision Trees and Random Forests in predictive models: project #1

by

Introduction

decision tree In the ever-evolving world of artificial intelligence and data-driven decision-making, two robust algorithms stand out for their simplicity and effectiveness Decision Trees and Random Forests. The interpretability and the accuracy properties make these machine learning techniques widely used for classification and/or regression tasks. In this blog, we’re going to see how these models work and share some insights from one implementation with the famous Iris dataset.

Decision Trees: Predictive Power Foundation

Explanation:

The power of predicting a result using Decision Trees and Random Forests is the foundation of predictive power.

A decision tree is a treelike structure where every internal node denotes a test on an attribute, each branch represents an outcome of the test, and each leaf node holds a class label. Interpreting decision trees is straightforward and powerful, and this ability makes decision trees useful in domains ranging from finance to healthcare to retail.

Key Steps in Implementing a Decision Tree:

  1. Data Preparation:

Preprocessing and loading the dataset and separating the input feature (X) and target variable (Y).

  1. Training:

 We fit a decision tree classifier on the training data.

  1. Visualization:

Easy interpretability of the process by generating a graphical representation.

  1. Evaluation:

 Assess model performance on unseen test data using metrics such as accuracy.

For our experiment, we trained a Decision Tree on the Iris dataset, which included data about different species of Iris flowers. We were able to predict the class on unseen samples accurately using Python’s sklearn library and visualize the decision tree. Results showed that models make effective split decisions to classify flower species.

Import libraries and iris data set for Decision Trees and Random Forests

Code:

import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
df=sns.load_dataset("iris")

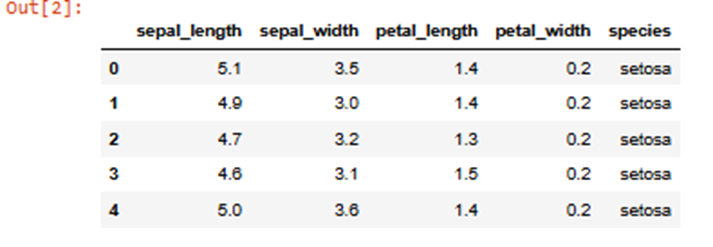

To show the dataset, print

df.head() #this show first five rows

Code for decision tree map:

DecisionTreeClassifier is from sklearn.tree.
plot_tree from sklearn.tree.
model=DecisionTreeClassifier().fit(x,y)
plot_tree(model,filled=True)

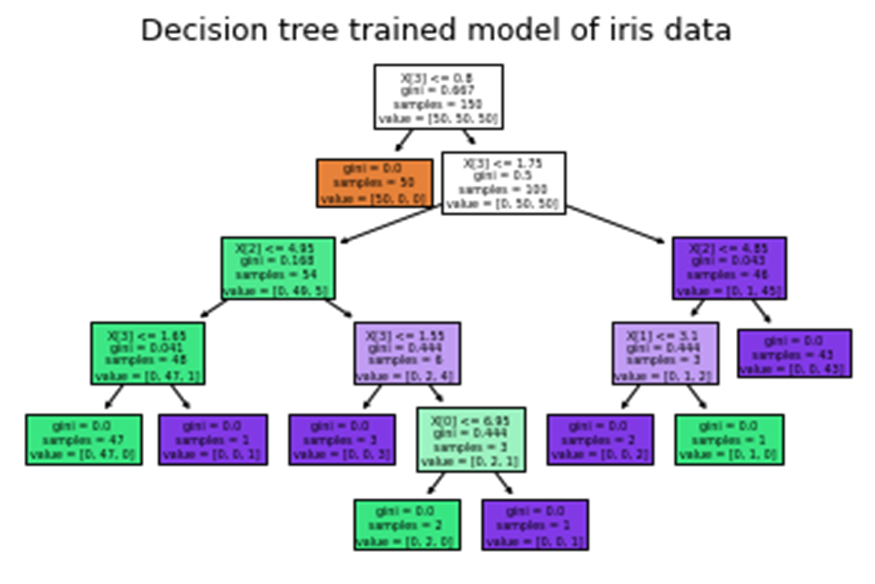

The trained model of iris data is plotted as a decision tree.

decision tree trained model of iris data image under Decision Trees and Random Forests in predictive models project

Code Example for Calculating Accuracy:

 Now it’s time to check the accuracy of the model. Import useful libraries of decision tree model

from sklearn.metrics import accuracy_score
from sklearn.tree import DecisionTreeClassifier
from sklearn.model_selection import train_test_split

Splitting data into training and testing sets

Usually we split data into two parts, one for training set and other for test set

Code:

<em>x_train, x_test, y_train, y_test = train_test_split(x, y, test_size=0.2, random_state=42)</em>

Training the Decision Tree

<em>dt_model = DecisionTreeClassifier()</em>
<em>dt_model.fit(x_train, y_train)</em>

Making predictions

<em>dt_predictions = dt_model.predict(x_test)</em>

 Evaluating the model

<em>dt_accuracy = accuracy_score(y_test, dt_predictions)</em>
<em>print("Accuracy of the Decision Tree model:", dt_accuracy)</em>

output: 1.00

   This 100% show model is highly accurate, but we don’t want hundreds of accuracy but while practicing on given data, if we use very high-quality data, then it can happen.

Random Forests: The Ensemble Advantage

Random Forest is an ensemble learning technique that trains several decision trees and forms their predictions to increase the accuracy and robustness of prediction. As an example, random forests typically outperform individual decision trees by reducing overfitting and by using randomness to select features.

Implementation Highlights:

1. Ensemble Creation: They train multiple decision trees on subsets of data.

2. Majority Voting: Once all tree predictions are combined to obtain the final output (for classification).

3. Performance Evaluation: Validation of the ensemble’s effectiveness is done by measuring accuracy.

To further prove our point, we tried Random Forests on the same dataset and the accuracy was so much better than the standalone Decision Tree model. With 100 estimators, our predictions were robust and consistent.

Code Example for Calculating Accuracy:

Some built in libraries that are essentially required to perform random forest model task must be imparted

from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import accuracy_score
from sklearn.model_selection import train_test_split

Splitting data into training and testing sets

Again, split data into two parts: one for training data and one for test data

x_train, x_test, y_train, y_test = train_test_split(x, y, test_size=0.2, random_state=42)

 Training the Random Forest model

rf_model = RandomForestClassifier(n_estimators=100, random_state=42)
rf_model.fit(x_train, y_train)

 Making predictions

rf_predictions = rf_model.predict(x_test)

 Evaluating the model

rf_accuracy = accuracy_score(y_test, rf_predictions)
print("Accuracy of the Random Forest model:", rf_accuracy)

 output:  1.00 The show model is highly accurate, though hundreds of accuracy is not desirable using Decision Trees and Random Forests, but it can happen when you work with very high-quality data during practice on given data.

Key Insights:

• Interpretability: Decision Trees clearly show how predictions are made.

• Accuracy and Stability: Individual trees have higher accuracy and can take noisy data, but Random Forests have even higher accuracy and can deal with noisy data.

• Scalability: The two models are computationally efficient and scalable to large datasets.

Final Thoughts

Decision trees and random forests are must-know tools for any data scientist or machine learning practitioner. The simplicity, power and versatility of their combination make them suitable for a very broad range of applications, from disease diagnosis to product recommendation.

Experimenting with these models is a great way to learn for those starting their journey in machine learning. We’ve found that these algorithms not only deliver high accuracy but also enable you to understand your data in more depth, as you can see from our work with the Iris dataset using Decision Trees and Random Forests.

Next, dive in and play a bit and see what you can do with decision trees and random forests in your projects. It’s endless, the possibilities!
